Quality:          This machine adopts German technology. The de-duster adopts positive spiral wave vibrate principle performance is stable.
Application:  Especially to use with tablet press machine for tablets de-dusting de-flashing polishing and lifting of the tablets.
                       metal impurities are separated from tablets as well.
Site:               This machine can use with any model tablet press machine or use as independent unit.

Design:                          Open and modular design; the body of the machine the inlet and outlet directions can be adjusted; machine
                                        parts can be dismantled extremely easy for maintenance. Thoroughly hygienic design.
Advantages:                  Good screening effect high production efficiency and complete separation of dust and machinery.
Height:                           The machine height can be adjusted.
Appearance:                  It is made of stainless steel fully mirror polished. The tablet contact parts are all made of food grade material.
                                       The machine appearance is elegant. And the screening body is optional mirror polish.
Cleaning:                       This machine is modular design free tool dismantling easy cleaning safe and compliment with GMP specifications.
System:                          Positive spiral wave technology is adopted can adjust speed and pause user friendly.
Features:                       Imported driving device which is of low noise and high stability.
Operation:                     Operation by manual knobs which are intuitive and convenient for operation.
Powder Discharging:   It has an exclusive outlet for fine powders. It can connect to a bypass from the tablet machine. It can also use an
                                        independent vacuum cleaner.
Scheme:                        The machine is compliment to the requirements of the GMP and CE.
Levels:                           Protection Degrees: IP54 which can meet the requirements of HACCP certification.
Power:                           The whole machine power consumption is 0.1kw/H which is entirely energy saving. Power supply 220V with earthing.
Documentation:            All the material certifications as well as IQ OQ PQ SOP and FAT are supplied with.


Metal detector: Please refer to Pharmaceutical metal Detector.

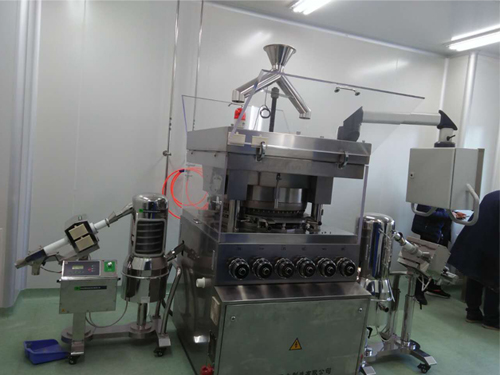

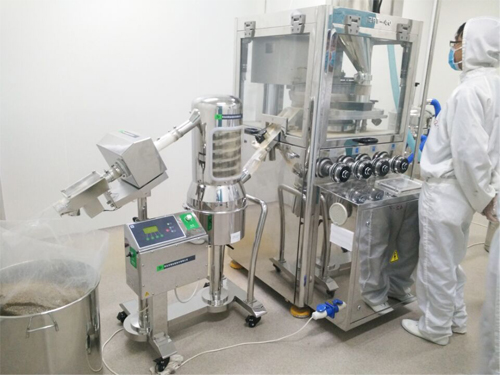

Integrated unit:  Control unit is imported from Germany. metal Detector and De-duster are integrated design use one control box to
                             control both machines. Machine is compact structure to suit site environment. Intuitive operation of machines
                             user password has level control. Machine has performance self qualification function. It has closed product transport
                             within the unit. Suitable for hazardous products and ensure production safety.
metal detector:  Please refer to 800kHz high precision Pharmaceutical metal Detector.

Suitable product	Tablet ￠3-￠25
Dimensions	1115X550X(1280-1440)mm
Capacity	Maximum 460000 PCS/H
De-dusting distance	Maximum 8.2 m
Discharge time	15 seconds
Power	220V/110V  50/60Hz
Integrated unit	metal detector and de-duster Maximum scanning sensitivity Fe 0.2mm SUS 0.5mm NoFe 0.3mm

Performance:   De-duster unit integrates tablet screening de-dusting flashing and polishing functions.
Improve:           Always improve the quality of products.
Optimization:   Optimize production process and improve efficiency.
Benefits:          Leave the unqualified products in your workshop avoid complaints and improve your corporate image.
Accept:             We accept challenge testing.
Warranty:         12 months.
After-sale:        For domestic customers we promise to resolve any issues within 48 hours. And for overseas customers we promise
                         to send out parts within 12 hours.
